| Technical Specifications |
| Model No. |
NVR-9432P16 |
| Video/Audio input |
| Video compression |
H.264, H265 |
| IP Video input |
32-ch |
| Incoming Bandwidth |
640 Mbps |
| Outgoing Bandwidth |
640 Mbps |
| Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video /Audio output |
| HDMI 1 output |
1-ch, resolution: 4K(3840*2160)/60Hz,4 K(3840*2160)/30Hz,1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| HDMI 2 output |
1-ch, resolution: 4K(3840*2160)/60Hz,4 K(3840*2160)/30Hz,1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| VGA output |
N/A |
| CVBS output |
N/A |
| Video spot output |
N/A |
| Encoding resolution |
12MP,8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P) |
| Frame rate |
30 fps |
| Video bit rate |
32 Kbps ~ 8192 Kbps, or user defined (Max. 8192 Kbps) |
| Audio output |
1-ch, RCA (Linear, 600 Ω) |
| Audio bit rate |
16 Kbps |
| Dual-stream |
Support | (Sub-stream at CIF / QCIF: 30fps) |
| Stream type |
Video, Video & Audio |
| Playback resolution |
12MP,8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P) |
| Synchronous playback |
16-ch 8MP |
| Hard Disk |
| SATA |
4 SATA interfaces |
| Capacity |
Up to 18TB capacity for each disk |

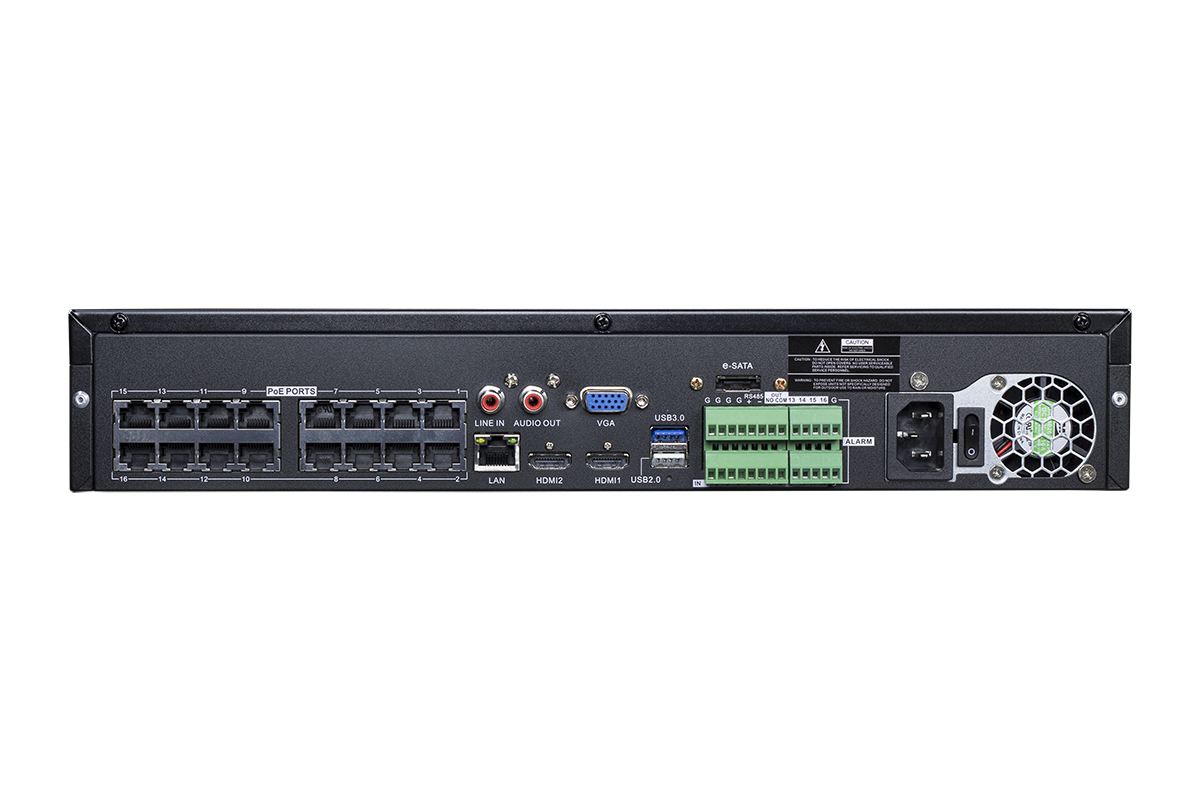

| Interface |
| Network interface |
2 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface 16 independent 10 / 100 Mbps PoE Ethernet interfaces |
| Web Browser |
IE, EDGE, CHROME, SAFARI, FIREFOX |
| Serial interface |
1 RS-485 half-duplex interface |
| P2P Connection |
Built in |
| Mobile App |
RXCAMVIEW Android/iPhone |
| USB interface |
1 x 3.0 USB Backup/Upgrade 2 x 2.0 USB |
| Alarm in/out |
16ch in / 1ch out |
| Reset |
Press 10 Sec Reset |
| General |
| Power supply |
AC 110~240V |
| Consumption |
≤12W |
| Working temperature |
14ᵒF – 131ᵒF |
| Working humidity |
10% ~ 90% |
| Chassis |
1U chassis |
| Dimensions |
15x 13.40 X2.5 inch |
| Weight |
< 4.2 Lb |
