| Technical Specifications |
| Model No. |

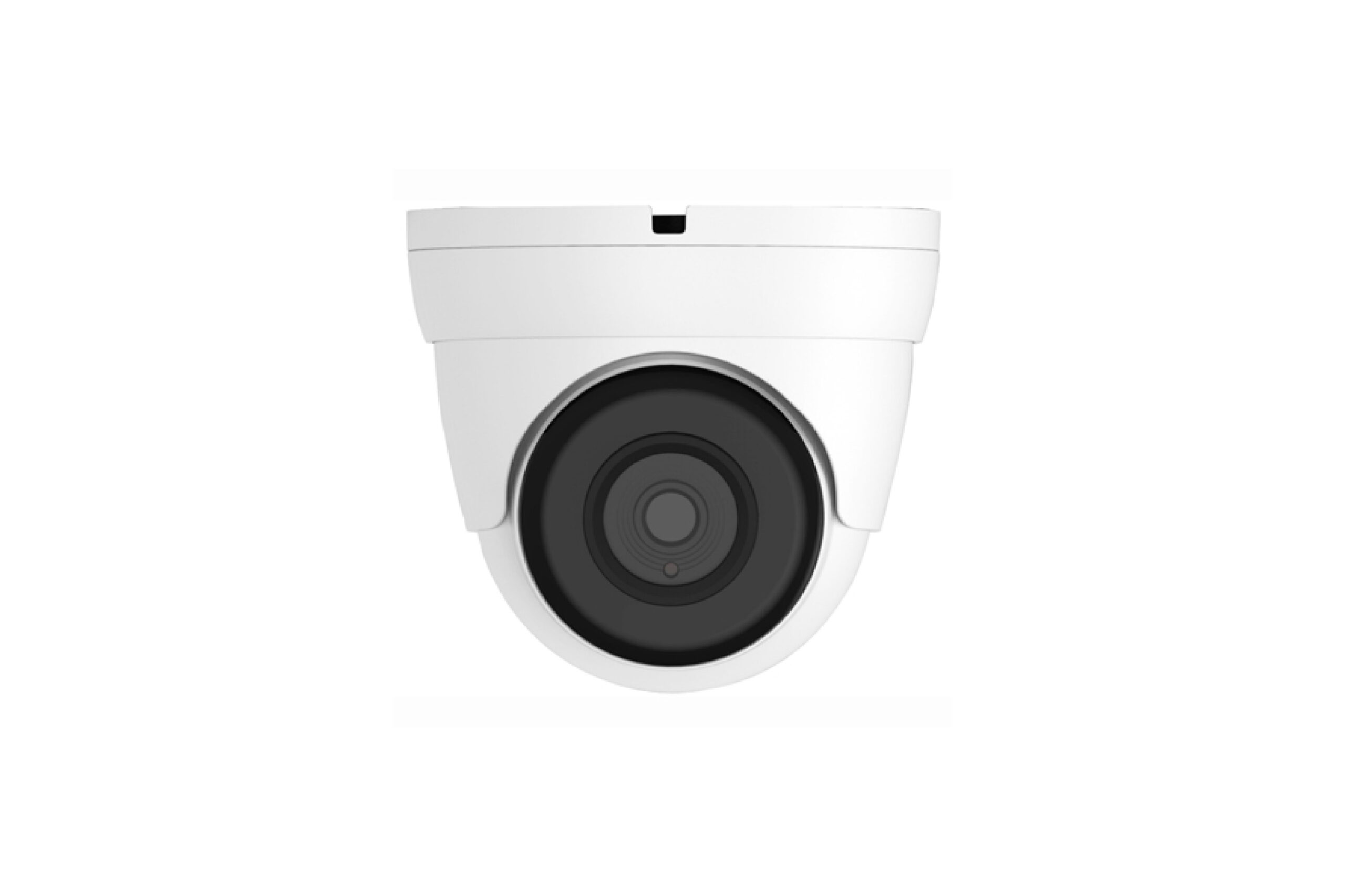

DFRT-1080PW28-S |
| Camera |
| Image sensor |
1/3“ Progressive Scan CMOS |
| Min. illumination |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR /0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
| Shutter time |
1 / 25 s to 1 / 50,000 s |
| Lens |
2.8mm Angle of View: 90.9° |
| Lens mount |
M12 |
| Day & night |
ICR |
| Digital noise reduction |
3D DNR |
| Wide dynamic range |
DWDR |
| Synchronization |
Internal synchronization |
| HD Video Output |
1 Analog HD ouput 4 in 1, HD-TVI, CVI, AHD, Analog |
| CVBS Output |
N/A |
| S/N Ratio |
More than 52dB |
| Image |
| Max. Image Resolution |
1920(H)*1080(V) |
| Signal System |
NTSC |
| Frame rate |
1080p@30fps |
| Image settings |
Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
| BLC |
Supported |
| General |
| Operating conditions |
(-22°F ~ 140 °F) humidity 90% or less (non-condensing) |
| Power supply |
12 VDC |
| Power consumption |
Max. 4W |
| Weather proof rating |
IP66 |
| IR range |
Up to 75ft |
| Dimension |
90×100 mm |
| Weight |
360 g (0.79 lb) |
