| Technical Specifications |
| Model No. |

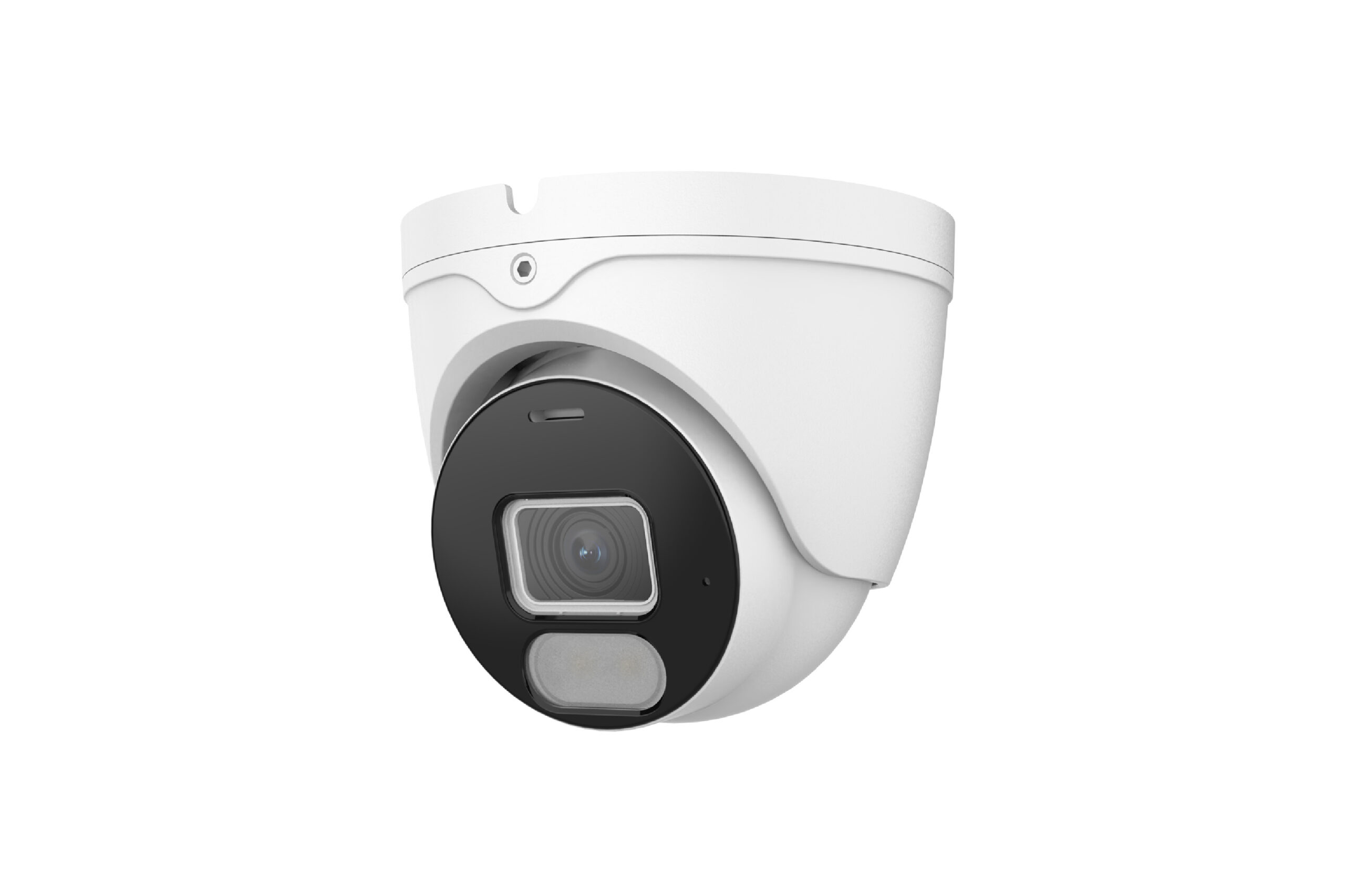

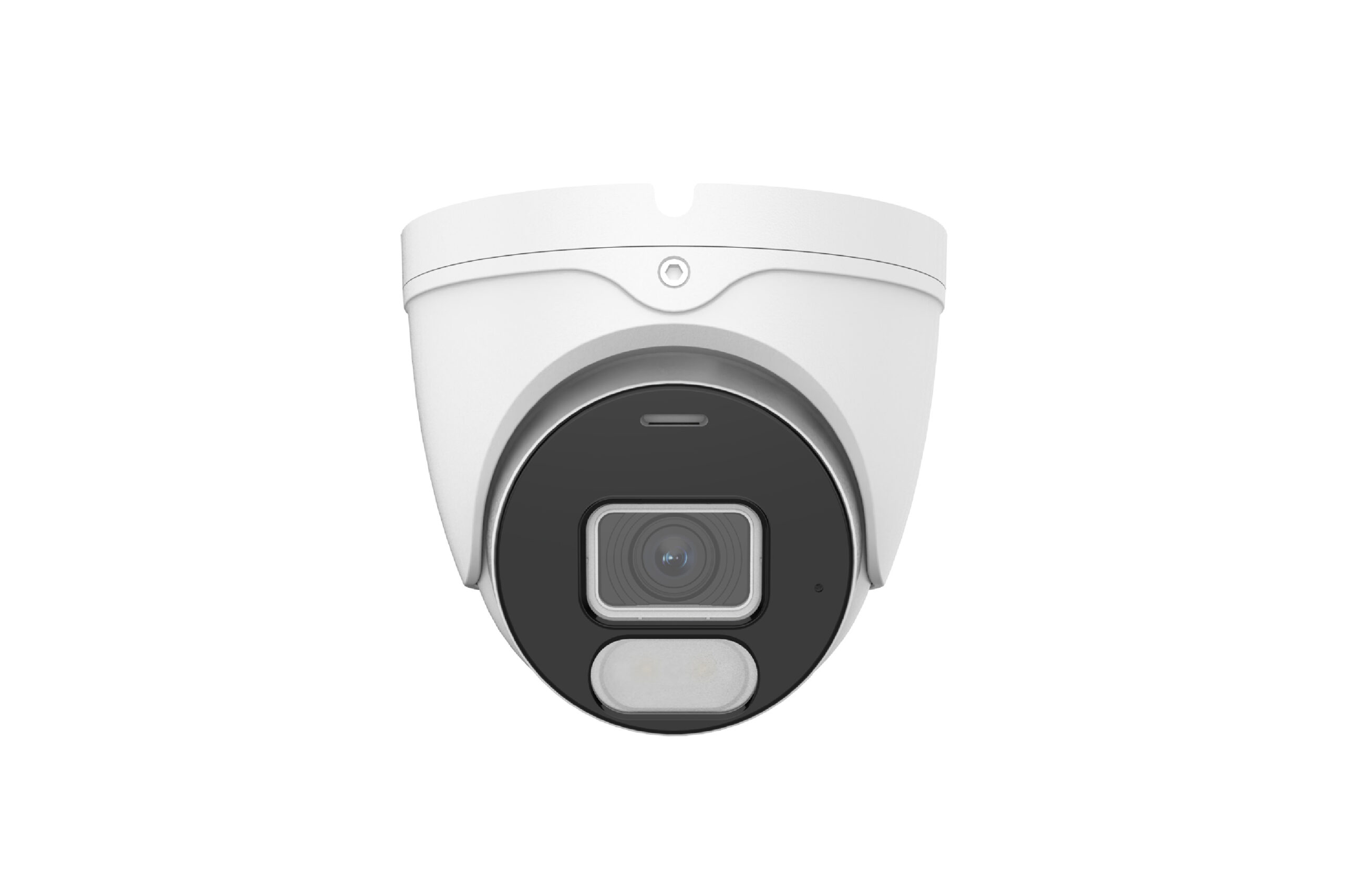

IPC-EDFR8MPWL-AI(II)-M-N |
| Camera |
| Image sensor |
1/2.5″ Progressive CMOS |
| Min. illumination |
0.01 lux @F1.2, AGC ON, 0 lux with IR |
| Shutter time |
1/3s ~ 1/10,000s |
| Lens |
2.8mm @F2.0 Angle of view: 109° |
| Lens mount |
M12 |
| Day & night |
IR cut filter with auto switch |
| Digital noise reduction |
3D DNR |
| Wide dynamic range |
True WDR |
| Two-way audio |
Built in |
| Compression Standard |
| Video compression |
H.264 / MJPEG / H.264+/H.265+ |
| H.264 codec profile |
Main profile |
| Bit rate |
32 Kbps ~ 16 Mbps |
| Dual streams |
Support |
| Image |
| Max. Image Resolution |
8MP 3840(H)×2160(V) |
| Frame rate |
60Hz: (1~30fps)5MP(2592×1944),4MP(2592×1520) 3MP(2048×1520),1080P(1920×1080) 960P(1280×960), 720P(1280×720) |
| Image settings |
Rotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse |
| BLC |
Yes, zone configurable |
| ROI Codec |
Support |
| Network |
| Network storage |
NAS (Support NFS,SMB/CIFS), ANR |
| Alarm trigger |
Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Interoperability |
ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Security |
User Authentication, watermark |
| Interface |
| Communication interface |
1 RJ45 10 M / 100 M Ethernet interface |
| Web Browser |
IE 7, IE 8, IE 9 |
| P2P Connection |
Built in |
| Mobile App |
RXCAMVIEW Android/iPhone |
| General |
| Operating conditions |
(-22°F ~ 140 °F) Humidity: 95% or less (non-condensing) |
| Power supply |
12 VDC ± 10% , PoE (802.3af) |
| Power consumption |
Max. 5W (Max 7W with IR cut filter on) |
| Weatherproof rating |
IP66 |
| SD Card |
Up to 256GB |
| IR range |
Up to 120 ft |
| White Light |
ON/OFF When PIR sense Motion |
| Dimension |
2.8″ x 2.78″ x 5.52″ |
| Weight |
1.1 lbs |
